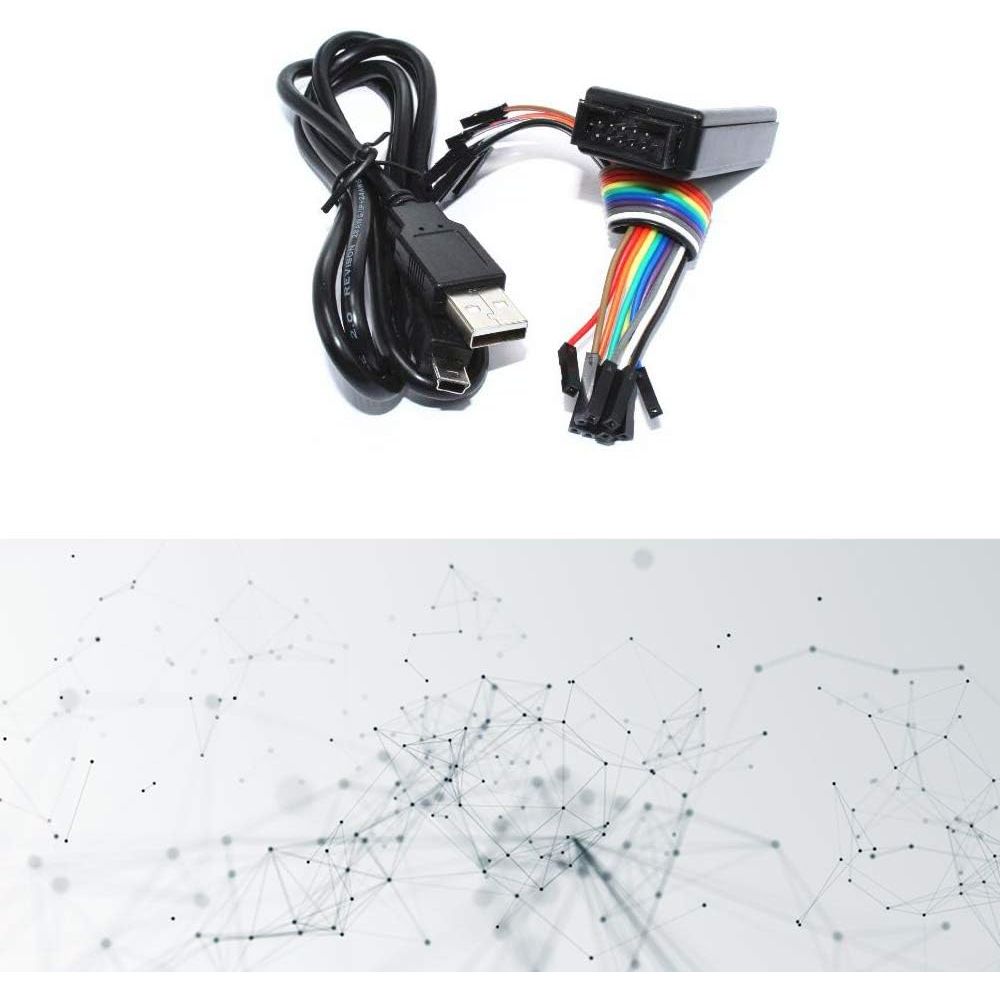

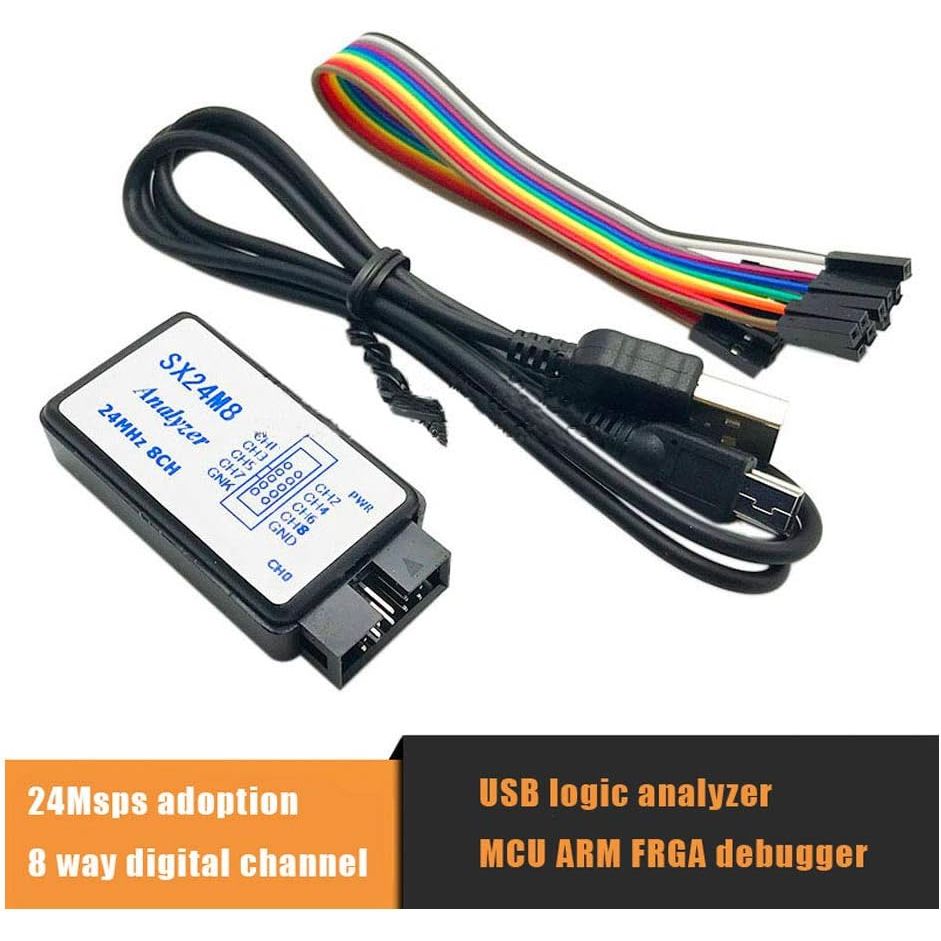

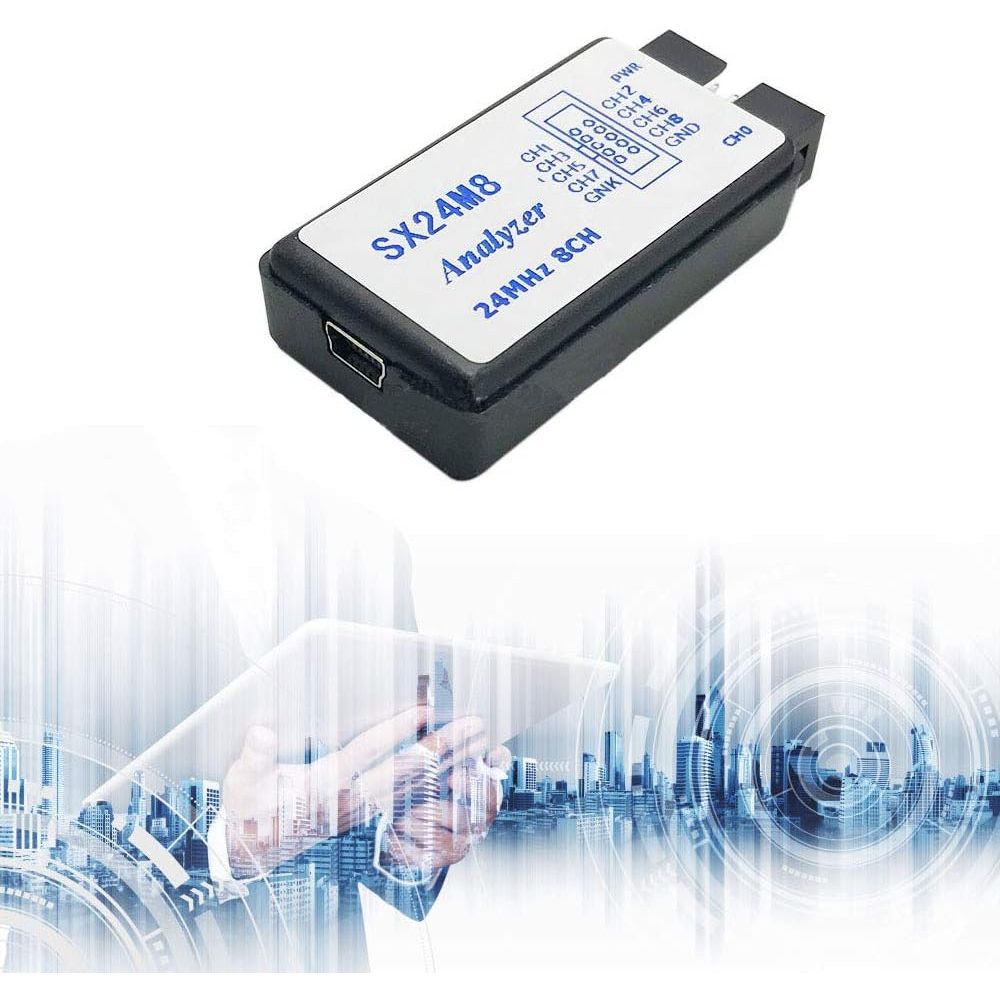

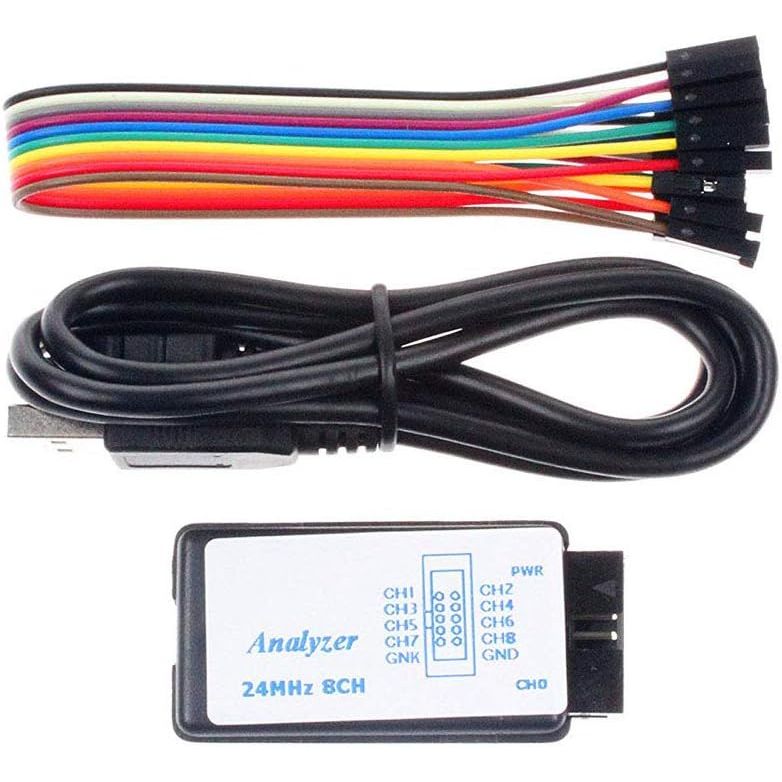

1Set USB Logic Analyzer Device Set USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug for Arduino ARM FPGA M100 Hot
Default
Rs. 1,850.00
Sale price
Rs. 1,850.00
Regular price
Skip to product information
1Set USB Logic Analyzer Device Set USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug for Arduino ARM FPGA M100 Hot
Rs. 1,850.00
Sale price
Rs. 1,850.00
Regular price
🛡️
Buyer Protection: Full refund if your order doesn't arrive as described.
About this item
- This item is an logic analyzer designed to be compatible with Saleae Logic Analyzer software.This item is also supported for PulseView.
- Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
- The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions.
- A total of 8 digital channels, the voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, above 1.5V is considered high.

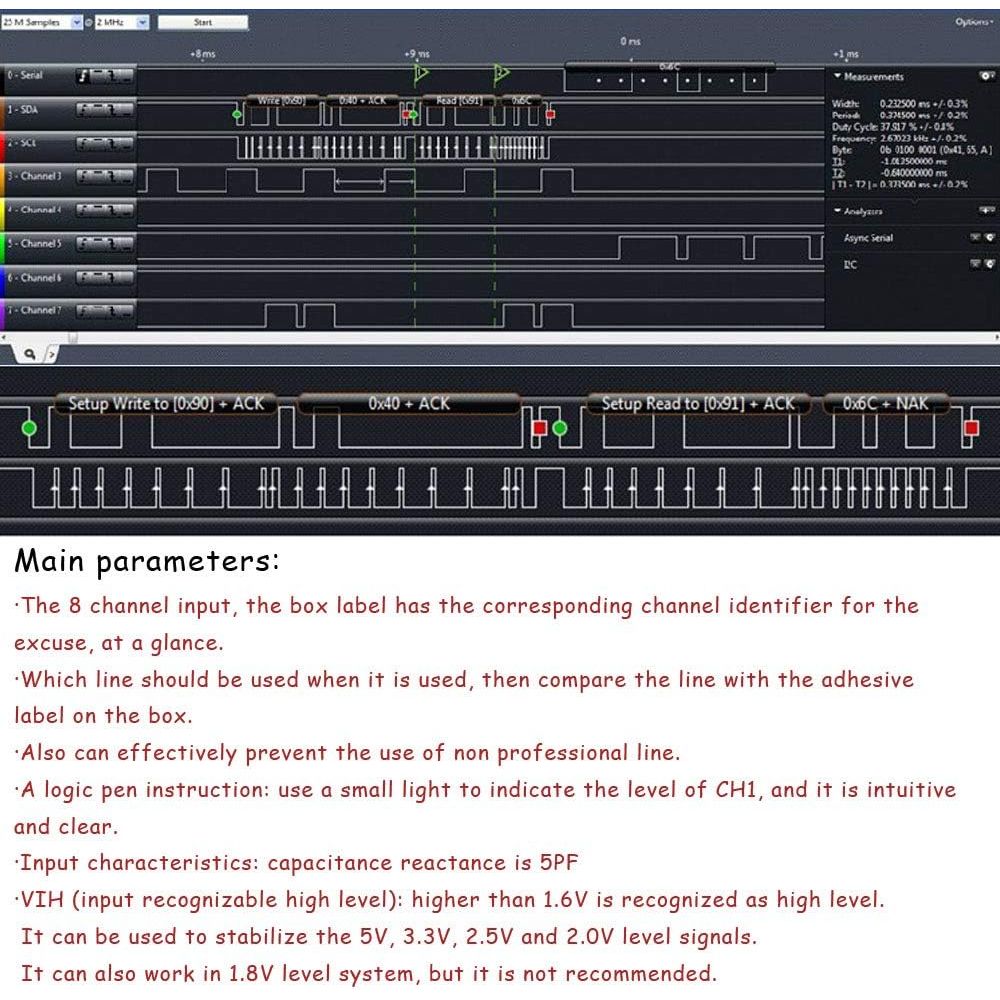

- UART, SPI, IIC and other communication debugging, let you get twice the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.
Description
This item is an logic analyzer designed to be compatible with Saleae Logic Analyzer software.This item is also supported by the software by Sigrok called PulseView. Specifications: Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended Input Impedance: 1Mohm || 10pF (typical, approximate) Crystl: +/-20ppm, 24MHz Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz) Note: The installation of electronic modules requires basic knowledge and requires a certain electronic professional foundation and hands-on ability. Please purchase carefully!
Product Details
| Property | Value |
|---|---|
| ram | LPDDR4 |
| asin | B07KW445DJ |
| brand | Comidox |
| series | CP317 |
| item weight | 1.76 ounces |
| manufacturer | Comidox |
| processor brand | ARM |
| customer reviews | 4.6 4.6 out of 5 stars 137 ratings 4.6 out of 5 stars |
| operating system | Linux, Windows |
| best sellers rank | #74,887 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #4 in Logic Analyzers |
| item model number | CP317 |
| package dimensions | 5.67 x 3.78 x 0.94 inches |
| date first available | November 26, 2018 |
| number of processors | 1 |
| is discontinued by manufacturer | No |
FAQ
Q
Is the 1Set USB Logic Analyzer Device sold by Curatcart India 100% authentic?
A
Yes, Curatcart India guarantees that the 1Set USB Logic Analyzer Device you purchase is completely authentic and original, ensuring high quality and performance.
Q
What are the key features of the 1Set USB Logic Analyzer Device?
A
The 1Set USB Logic Analyzer features 8 channels, supports IIC, SPI, and UART protocols, and can operate up to 24MHz, making it ideal for debugging various hardware projects.
Q
How do I use the 1Set USB Logic Analyzer Device with Arduino?
A
To use it with Arduino, connect the analyzer to the UART, IIC, or SPI pins of your Arduino. Invoke the appropriate protocol on your Arduino code, and utilize compatible software for visualization and debugging.
Q
What types of signals can the 1Set USB Logic Analyzer capture?
A
This logic analyzer can capture digital signals from IIC, SPI, and UART communication protocols, providing real-time data analysis for your hardware projects, which is essential for debugging and signal analysis.
Q
Are there any specific ingredients or materials in the 1Set USB Logic Analyzer Device?
A
The 1Set USB Logic Analyzer Device is made from high-quality electronic components such as integrated circuits and connectors, designed for durability and optimal performance, ensuring reliability in your testing and debugging tasks.
