Hantek PP80B 2pcs Oscilloscope Scope Clip Probe 1x:10x Oscillograph Rapier 80MHz

Default

Rs. 2,480.00

Hantek PP80B 2pcs Oscilloscope Scope Clip Probe 1x:10x Oscillograph Rapier 80MHz

Rs. 2,480.00

🛡️ Buyer Protection: Full refund if your order doesn't arrive as described.

About this item

x1:DC-6MHz; x10: DC-60MHz;Compensation scope:20pF-40pF;Cable length120cm

Description

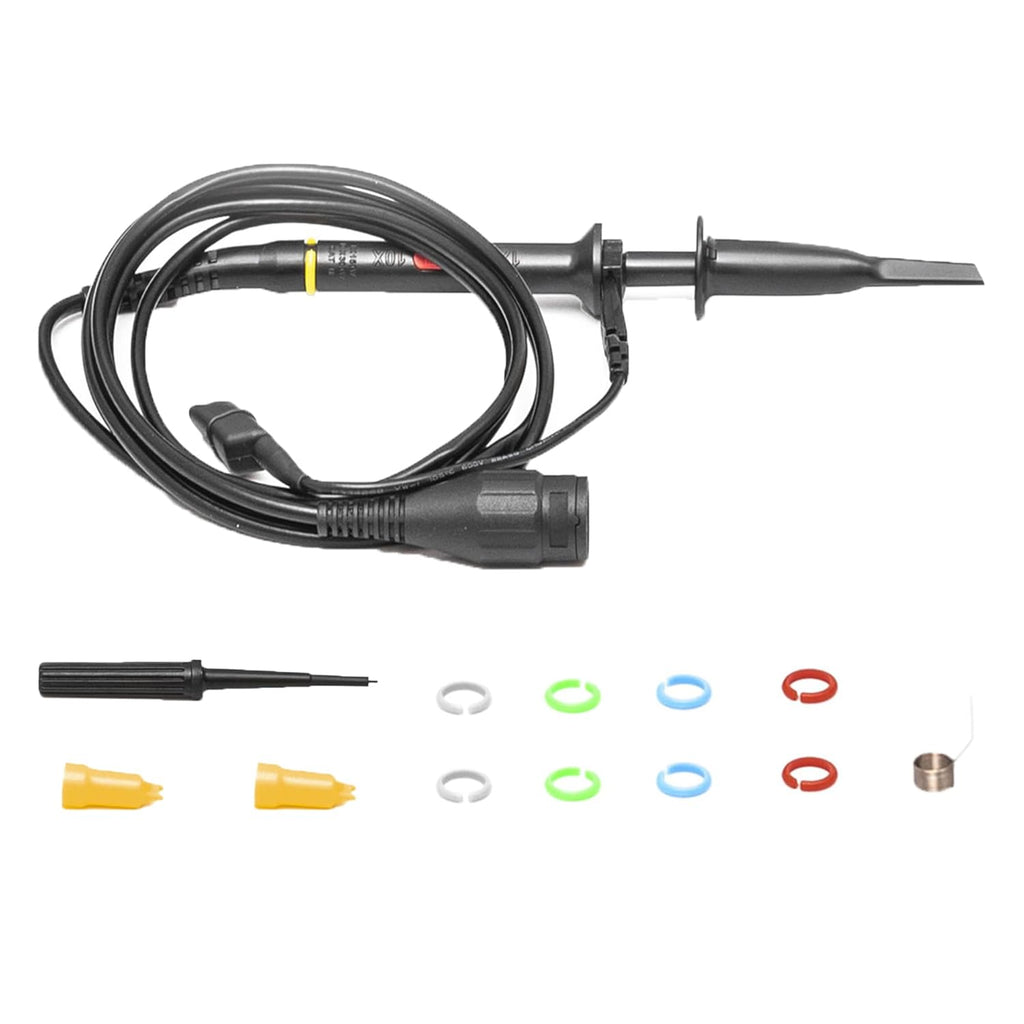

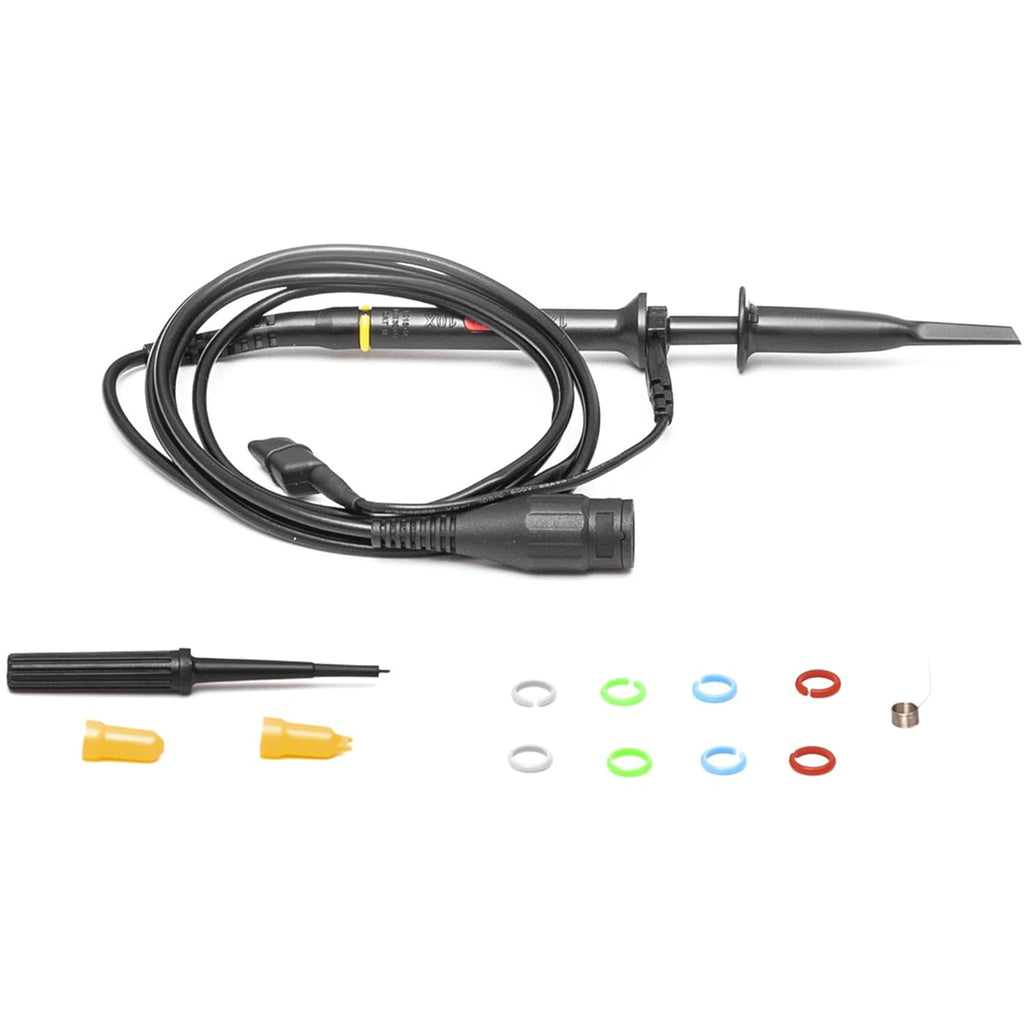

Before taking any measurements using a probe, first check the compensation of the probe and adjust it to match the channel inputs.Most oscilloscopes have a square wave reference signal available at a terminal on the front panel used to compensate the probe.Connect the probe to the signal source on your oscilloscope.Set the probe to 10x position.Adjust trimmer until seeing flat-top square wave on the display. IEC measurement category ll is for measurements performed on circuits directly connected to low voltage installations. Examples are measurements on household appliances, portable tools and similar equipment. Probe is provided with several accessories designed to make probing and measurement simpler.Please take a moment to familiarize yourself with these accessories and their uses.

Product Details

Property	Value
asin	B01F7FS8MY
manufacturer	Hantek
best sellers rank	#38 in Oscilloscope Probes
item model number	PP80
package dimensions	7.48 x 4.57 x 0.94 inches; 1 Pounds
date first available	May 5, 2016
is discontinued by manufacturer	No

FAQ

Q

Is the Hantek PP80B Oscilloscope Probe sold by Curatcart India 100% authentic?

A

Yes, Curatcart India guarantees that the Hantek PP80B Oscilloscope Probe you purchase is entirely authentic and original, ensuring top-notch performance.

Q

What are the key features of the Hantek PP80B Oscilloscope Probe?

A

The Hantek PP80B features a 1x and 10x switchable attenuation ratio, making it versatile for various applications. With an impressive bandwidth of 80MHz, it provides accurate signal representation for precise measurements.

Q

How do I use the Hantek PP80B Oscilloscope Probe effectively?

A

To use the Hantek PP80B, connect the probe to the oscilloscope and the target circuit. Adjust the attenuation setting based on the voltage levels you are measuring to ensure optimal accuracy.

Q

What materials are the Hantek PP80B Oscilloscope Probe made from?

A

The Hantek PP80B is constructed from high-quality materials, including durable insulation and a flexible cable, ensuring reliability during use. The probe tips are designed for precise measurement in tight spaces.

Q

What frequency ranges does the Hantek PP80B Oscilloscope Probe support?

A

The Hantek PP80B is designed to support frequencies up to 80MHz, making it suitable for a wide range of electronic testing. This capability allows for effective observation of both analog and digital signals.
